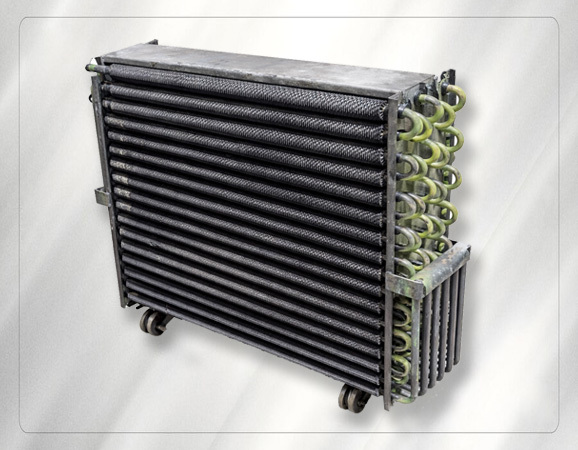

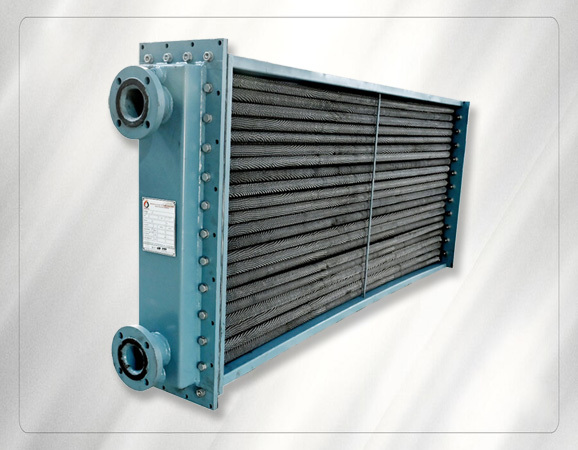

Air Fin Air Finned Finned Tube Heat Exchangers

Air Fin Air Finned Finned Tube Heat Exchangers Price And Quantity

• Minimum Order Quantity 10 Unit

• Fin Type G-Fin, L-Fin, Integral, High-frequency welded
• Surface Finish Hot-dip galvanized, painted, or natural finish
• Corrosion Resistance Available with epoxy or zinc/aluminium coating
• Testing Hydrostatic and pneumatic testing as per standard
• Header Type Seamless/Split header, plug type/header box
• Tube Material Carbon Steel, Stainless Steel, Copper
• Application Air cooling, waste heat recovery, oil cooling, process industries
• Mounting Horizontal or vertical installation as per requirement
• Fin Material Aluminium, Copper, Stainless Steel
• Noise Level < 80 dB(A) with optional acoustic insulation
• Standards Manufactured per ASME, TEMA, or customer specification
• Fan Type Optional; axial flow or centrifugal, if required

Air Fin Air Finned Finned Tube Heat Exchangers Product Specifications

• Condition New
• Number of Pipe Varies; typically 4 to 60 tubes per bank
• Max. Capacity Up to 10,000 kW or as per design
• Diameter Tube OD: 16 mm to 50 mm
• Thickness Tube thickness 1.5 mm to 3 mm; fin thickness 0.15 to 0.5 mm
• Weight As per design; typically ranges from 50 kg to 800 kg/unit
• Dimensions Customized; standard models from 0.5 m x 1 m to 2.5 m x 8 m
• Air Volume 500 m3/h to 50,000 m3/h based on size and fan
• Liquid Flow Rate Customized; typically 5 m3/h to 100 m3/h
• Power Not applicable; passive heat exchange equipment
• Working Presssure Up to 40 bar (as per application requirements)
• Max Pressure Up to 40 bar
• Temperature Suitable for operation from -40C to 300C
• Structure Finned tube assembly with headers and frames
• Voltage Not required; no electrical parts unless equipped with fan

• Fin Type G-Fin, L-Fin, Integral, High-frequency welded
• Surface Finish Hot-dip galvanized, painted, or natural finish
• Corrosion Resistance Available with epoxy or zinc/aluminium coating
• Testing Hydrostatic and pneumatic testing as per standard
• Header Type Seamless/Split header, plug type/header box
• Tube Material Carbon Steel, Stainless Steel, Copper
• Application Air cooling, waste heat recovery, oil cooling, process industries
• Mounting Horizontal or vertical installation as per requirement
• Fin Material Aluminium, Copper, Stainless Steel
• Noise Level < 80 dB(A) with optional acoustic insulation
• Standards Manufactured per ASME, TEMA, or customer specification
• Fan Type Optional; axial flow or centrifugal, if required

Air Fin Air Finned Finned Tube Heat Exchangers Trade Information

• Payment Terms Cash in Advance (CID)
• Supply Ability 100 Unit Per Month
• Delivery Time 10 Days
• Main Domestic Market All India
